CIM 3.41 - August 9, 2024

Posted about 1 month ago by Wendy Acoin

Wendy Acoin Admin

1. Enhancements

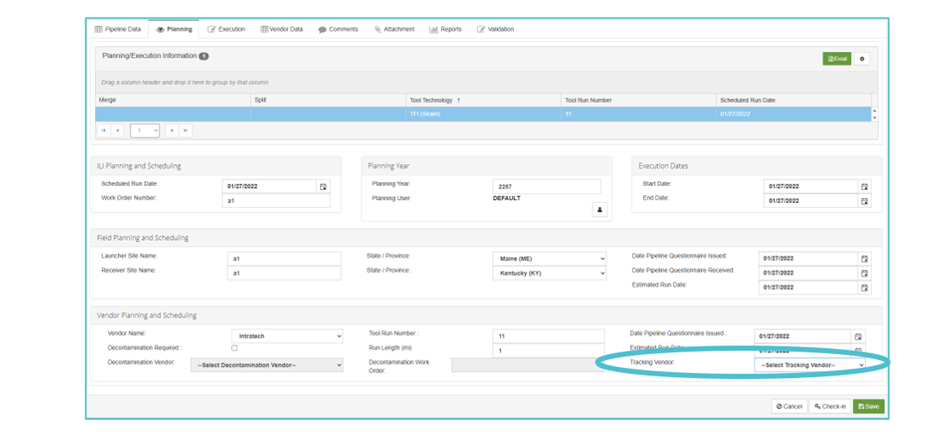

3.41-1 Tracking Vendor: Added new field that allows user to identify the tracking vendor utilized during an inline inspection, found on AP – Planning tab.

3.41-2 Conditions with Mill-Related Wall Loss: Created new anomaly conditions that check for current conditions with the added classification code for mill-related wall loss.

Condition Priority Code	Description	New conditions created to include mill-related ML
UCDIA	ML >= 80% Depth, HCA	UCDIA2
UCDIB1	ML FPR < 1.1	UCDIB1B
UCDIIID	ML PSafe < MOP, HCA	UCDIIID1A
UDCDIIIE4	ML >= 50% Depth, HCA	UCDIIIE4A
UCDIBDP	ML PFail <= Design Pressure, HCA	UCDIBDP1

3.41-3 New Gas Monitored Conditions: Created new IC conditions to check for Monitored repair conditions on gas pipelines per US regulations: 49 CFR 192.933(d)(3) and 49 CFR 192.714(d)(3). Business codes for the new conditions are as follows:

Condition Priority Code	Description
UCDIIID8HCAA	Metal Loss preferentially affecting Seam Weld in Class 1: FP/MAOP > 1.39
UCDIIID8NONHCAA	Metal Loss preferentially affecting Seam Weld in Class 1: FP/MAOP > 1.39
UCDIIID8HCAB	Metal Loss preferentially affecting Seam Weld in Class 2, 3 or 4: FP/MAOP > 1.5
UCDIIID8NONHCAB	Metal Loss preferentially affecting Seam Weld in Class 2, 3 or 4: FP/MAOP > 1.5
UCDIIIC10HCA	Crack or Crack-like Anomaly Class 1: FP/MAOP >= 1.39
UCDIIIC10NONHCA	Crack or Crack-like Anomaly Class 1: FP/MAOP >= 1.39
UCDIIIC11HCA	Crack or Crack-like Anomaly Class 2, 3, or 4: FP/MAOP >= 1.5
UCDIIIC11NONHCA	Crack or Crack-like Anomaly Class 2, 3, or 4: FP/MAOP >= 1.5
UCDIIIC12HCA	Crack or Crack-like Anomaly Class 1: FP/MAOP < 1.39
UCDIIIC12NONHCA	Crack or Crack-like Anomaly Class 1: FP/MAOP < 1.39
UCDIIIC13HCA	Crack or Crack-like Anomaly Class 2, 3, or 4: FP/MAOP < 1.5
UCDIIIC13NONHCA	Crack or Crack-like Anomaly Class 2, 3, or 4: FP/MAOP < 1.5

3.41-4 New SSWC Condition: Created a new IC condition for identifying selective seam weld corrosion in a non-HCA. The HCA condition is UCDIIIH4. The new non-HCA version of this condition is UCDIIIH4NONHCA.
3.41-5 Created a new version of condition UCD3210 (Description: Buckles, Ripples or Wrinkles) that includes the classification, Dent w/Others, and removes wrinkle severity threshold. The new condition is UCD3210A.

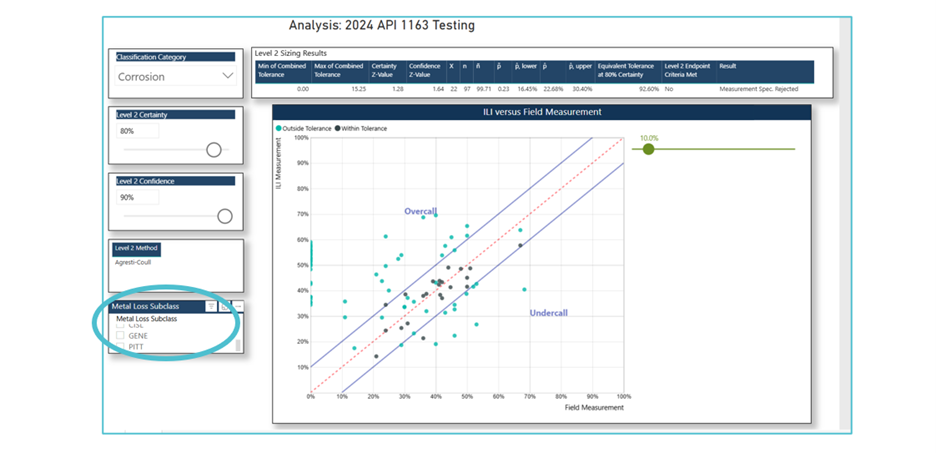

3.41-6 API 1163 Analysis Results: Added new filter for metal loss sub-class. Tolerance bands on the graph will adjust to the tolerance of the selected metal loss sub-class.

3.41-7 Dig Number in File Name: Dig number is now added to the file/report name for all documents in an exported Dig Package i.e. Dig Feature Worklist, Repair Template, and KML file. Previously, the files would export with a generic name, causing user to have to open the file to know what dig the file was for.
- Before: repairexportimporttemplate
- After: 19-0444 – Repair Template (where 19-0444 is the Dig #)

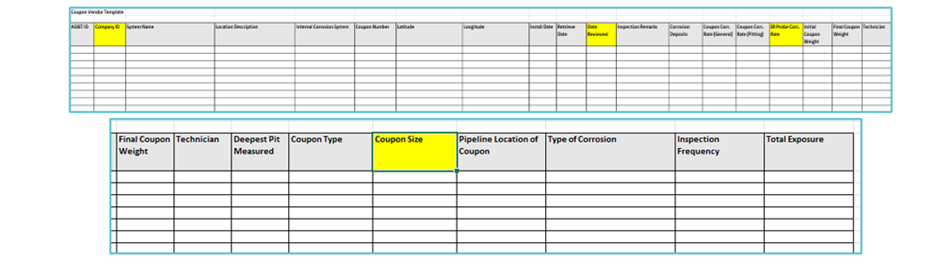

3.41-8 Updated Coupon Vendor template in ICM - Manage Data, which includes changing “PCS ID” to “Company ID”, add new column "ER Probe Corr. Rate", add "Date Reviewed", and add "Coupon Size". (New/updated columns highlighted in yellow.)

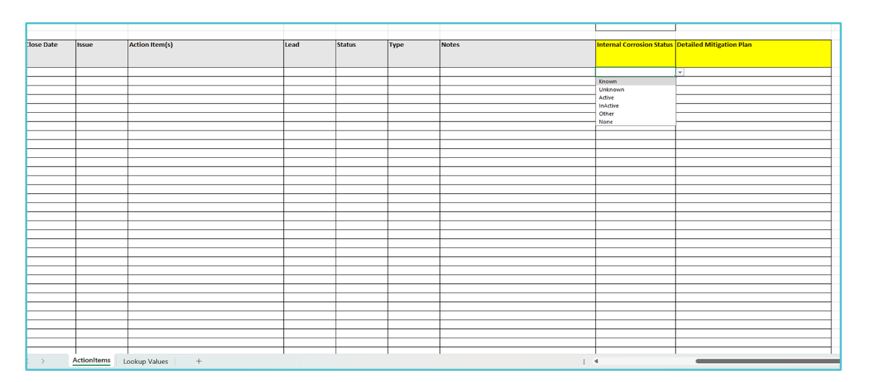

3.41-9 Added new fields in Action Item Template, so that user can state the "Internal Corrosion Status" (dropdown) and "Mitigation Plan" (open text) of each pipeline system. (New columns highlighted in yellow.)

3.41-10 Added missing "Prior Repair Data" column to exported spreadsheet from Add Anomalies to Analysis - Available Anomalies grid.

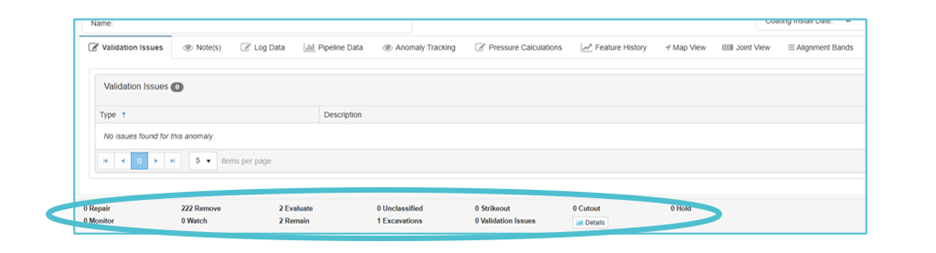

3.41-11 Fixed a bug where the Assign Action screen footer was displaying the Description of the Action rather than the Name of the Action.

3.41-12 Fixed a bug where targeted anomalies were also showing as nearby anomalies in Dig Feature Worklist
3.41-13 Fixed a bug where welds in Dig Feature Worklist were from different systems than the selected system.
3.41-14 Fixed a bug where the validations for uploading a Repair Template were not working correctly with respect to the Recoat Start/End fields.
3.41-15 Fixed various bugs with Dig Feature Worklist
- a. Fixed a bug where the orientation for nearby features was not displaying in the Dig Feature Worklist.
- b. Dig Feature Worklist not filtering as client thinks it should i.e. based on the selected dig(s)
- c. Fixed a bug where the Dig Feature Worklist was not applying the tool run filter.
- d. Improved performance of Dig Feature Worklist report to address timeouts

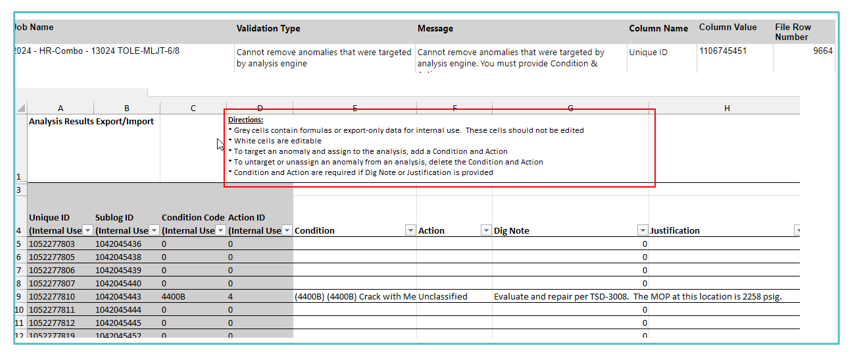

3.41-16 Updated instructions in Analysis Results template to ensure all scenarios are captured.

3.41-17 Fixed an issue where the Repair Template was not properly validating Crack Depth % entries.
